- Parameters
- Swing over bed ф600mm
- Max machining length 400mm
- Max turning dia ф380mm

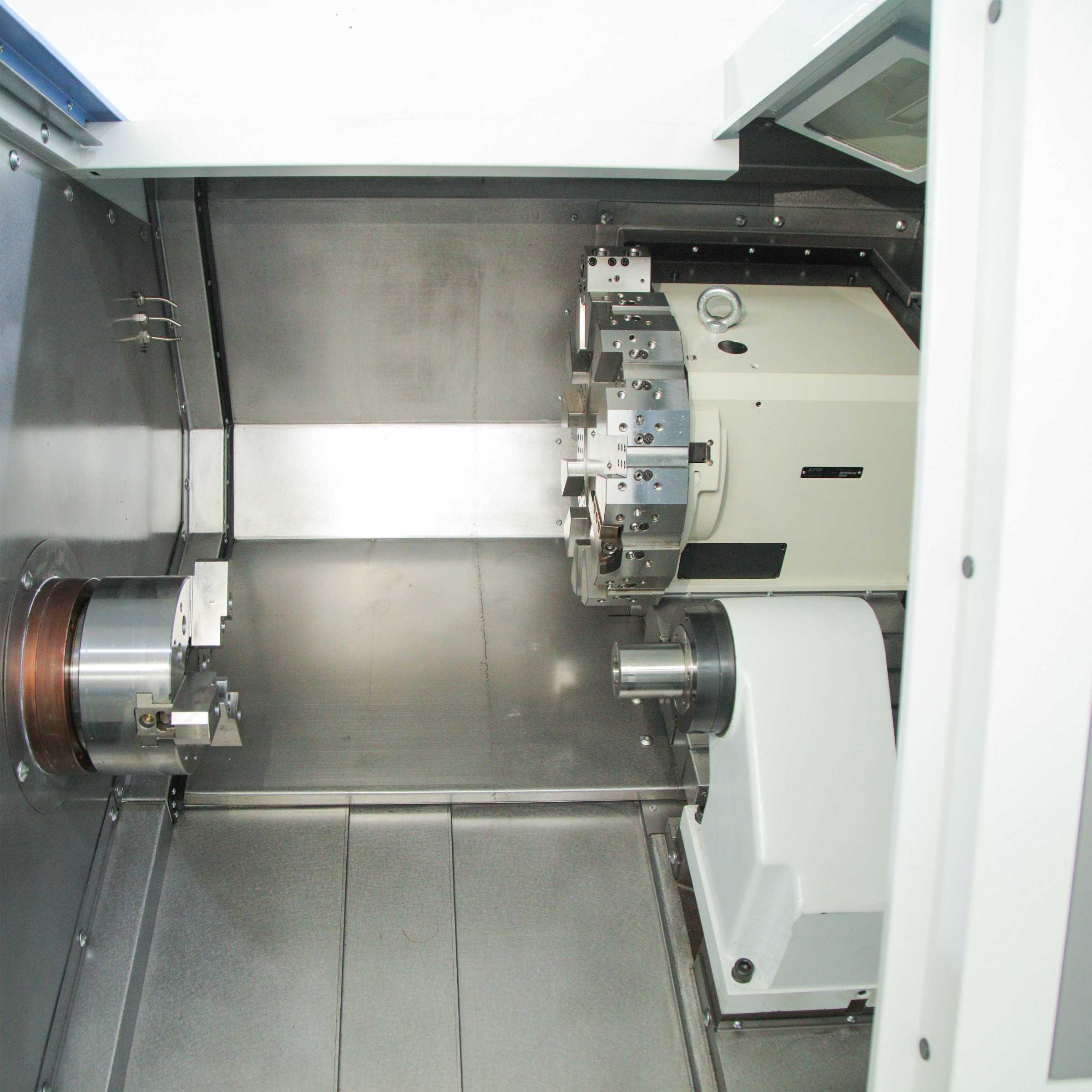

SLANT BED CNC LATHE
Product introduction
High Precision:Single spindle and servo turret ensure accurate and stable machining, delivering tight tolerances and high-quality finishes.
Enhanced Stability:Tailstock provides additional support for long shaft workpieces, improving machining accuracy and surface quality.
Cost-Effective:Single spindle and servo turret design balances functionality and affordability, ideal for budget-conscious users.
Efficient Tooling:Servo turret enables fast and precise tool changes, reducing downtime and increasing productivity.
Wide Machining Range:Tailstock accommodates workpieces of various lengths, suitable for machining shafts, discs, and sleeves.
Compact Design:Simple structure saves workshop space while maintaining robust performance.
Automation Ready:Compatible with automation systems for unmanned operation, reducing labor costs and improving efficiency.
Wide Applications:Ideal for industries such as automotive, machinery, and general manufacturing, capable of handling small to medium batch production.
| YK5245 | |||
| Machining Capacity | Swing over bed | mm | Φ600 |
| Swing over carriage | mm | Φ320 | |
| Max machining length | mm | 400 | |
| Max turning dia | mm | Φ380 | |
| Max bar material size | mm | Φ52 | |
| Distance between centers | mm | 450 | |
| Interference diameter | mm | Φ180 | |
| Spindle | Spindle nose | - | A2-6 |
| Spindle bore | mm | Φ67 | |
| Taper of spindle inner hole | Metric 70（1：20） | ||
| Spindle motor power | kw | 11 | |
| Chuck size | inch | 8 | |
| Spindle speed | rpm | 200-3000 | |
| Axes specs | Axes travel | mm | X200Z450 |
| Axes fast moving | m/min | X20 Z22 | |
| Repeatable positioning accuracy | mm | X0.003Z0.005 | |
| Tool type | Turret | - | 12-168-420 static servo turret |
| Tool holder size | mm | 25*25/ф32 | |
| Tail-stock | Tail-stock form | - | ■Contact hydraulic |
| Quill inner taper | MT | 4# | |
| Other specs | Programming | ISO standard | |
| Cooling motor | w | 550 | |
| Specifications | Dimension | mm | 2800*1700*1800 |
| Weight | kg | arround 3300 | |
| Note: In the technical parameters,“■”represents optional items. As the technical parameters are constantly updated, the technical parameters are subject to the actual equipment parameters, and the final interpretation right belongs to the manufacturer |
|||
